FLIR Elara DX-Series

型号: 427-0300-40-00 转到支持页面

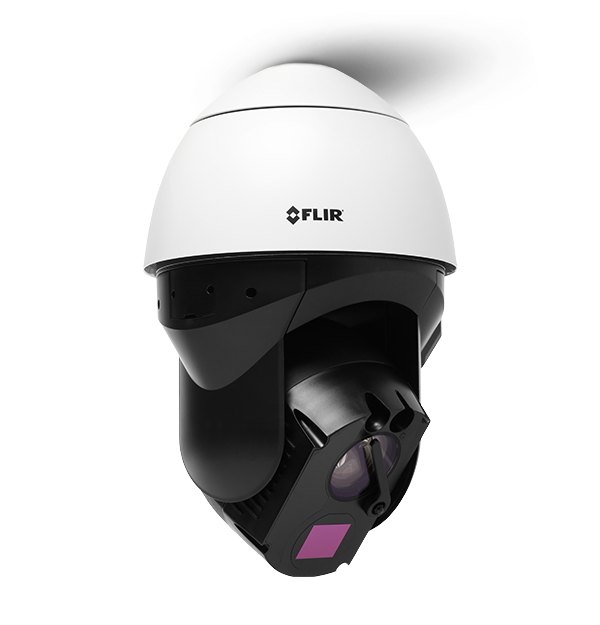

product image

The FLIR Elara™ DX-Series multispectral pan/tilt/zoom (PTZ) security camera provides full situational awareness in the most punishing environments. Combining thermal and visible light imagers, the Elara DX-Series gives operators the ability to monitor large areas in complete darkness, glaring light, and adverse weather. The exceptional detection and identification capabilities of multispectral cameras help integrators provide solutions for challenging imaging problems at critical infrastructure sites and remote facilities.

Sales Contact 联系销售
  • MULTISPECTRAL IMAGING IN ANY CONDITION

    Integrated thermal and visible sensors capture sharp video where other PTZ cameras cannot.

  • DESIGNED TO WITHSTAND EXTREME ENVIRONMENTS

    Built to handle the challenges of critical infrastructure sites and other demanding locations.

  • SUPERIOR MONITORING OF LARGE AREAS AND CHANGING ENVIRONMENTS

    PTZ capability gives operators continuous visibility in large areas plus optional thermal zoom up to 5x with 15 mm to 75 mm zoom lens

联系销售

想要了解此产品的更多相关信息?

请致电 +852 3008 1658 咨询FLIR经验丰富的专业人士

技术参数
常规
调焦范围
Athermalized, Focus-Free
热像仪波长范围
7.5 μm to 13.5 μm
输入电压
24 VAC(±10%)
Universal POE injector
数字变焦
Visible: Optical Zoom: 31
探测器类型
Long-Life, Uncooled VOx Microbolometer
PTZ
俯仰角速度
-10° to 190°
0.1° to 60°/sec
测量与分析
可编程预设值
256
环境
IP防护等级(防尘防水)
IP66
存储温度
-55°C to 85°C
工作温度范围
-40°C to 60°C
抗振动
IEC 60068-2-64
抗撞击
IEC 60068-2-27
湿度
0-95% relative
可见光相机
焦距
6.5mm - 202mm
镜头的视场角
Visible:
HFOV: 61.8° - 2.15°
VFOV: 36.65° - 1.2°
灵敏度
Visible:
Color: 0.25 Lux (@ (f1.6 AGC On, 30FPS)
B/W: 0.10 Lux (@ (f1.6 AGC On, 30FPS)
阵列格式
320 × 240
热像仪
光学特性
FOV: 6° × 5°
Focal Length: 36 mm
热图像设置
Auto AGC, Dynamic Detail Enhancement (DDE), Brightness, Sharpness, Contrast
热帧频
NTSC: 30 Hz or PAL: 25 Hz / 8.3 Hz
视频和录制
视频图像一致性优化
Automatic Flat Field Correction (FFC) - Thermal and Temporal Triggers
视频压缩
Thermal: One channel of H.264 & M-JPEG
Visible: Two independent channels of H.264 & M-JPEG
系统集成
视频流分辨率
Thermal: QVGA to VGA
Visible: VGA to 4k
以太网
10/100/1000 Mbps
支持的协议
IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP
相关文档
出口限制

出口限制

本页所载信息涉及的产品可能受《国际武器贸易条例》(ITAR)(22 C.F.R. 第 120-130 条)或《出口管制条例》(EAR)(15 C.F.R. 第 730-774 条)约束,具体取决于最终产品的规格;司法管辖权和分类将应要求提供。

FLIR Elara DX-Series - Model: 427-0300-40-00
