Thermal AI Analytics Camera

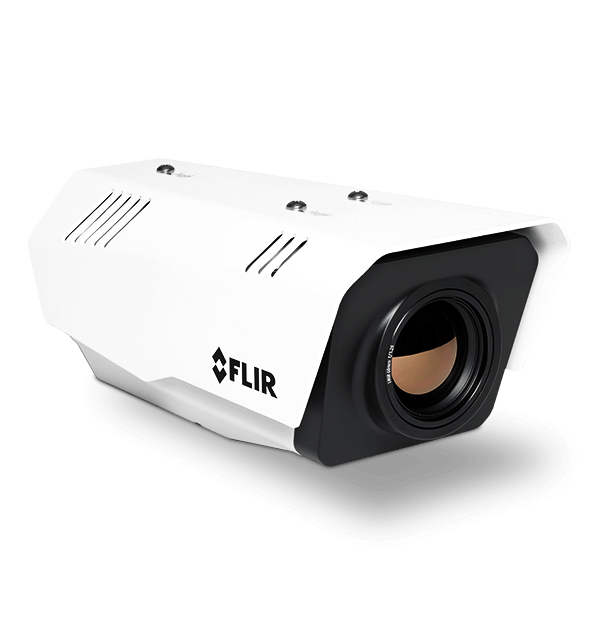

FLIR FC-Series AI

型号: FLIR FC-608 AI, 8.6° (75 mm) f/1.1 lens 转到支持页面
product image

The FLIR FC-Series AI is a thermal analytics security camera that offers a reliable, cost-effective way to protect perimeters from intrusion. The AI analytics combines both DNN and motion analytics that together enhances situational awareness and incident detection, enabling users to make better informed decisions that increases safety and improves coordination and efficiency. The FLIR FC-Series AI's thermal sensitivity (<25 mK NETD) provides crisp image clarity positively impacting the quality and performance of analytics. In addition, the FC-Series AI provides the widest range of lens options and cyber-hardened, seamless integration with Video Management Systems including FLIR UVMS and 3rd party video management systems.

  • Accurately recognize humans and vehicles

    Robust DNN video analytics make it possible to differentiate between true threats and nuisance alarms, even when someone is attempting to deceive the system.

  • Choose from 8 lens options

    FLIR has the widest range of lenses to choose from, with 8 high-performance lenses ranging from 8.6° × 6.6° to 90° × 69° fields of view

  • Enhance situational awareness

    Target geolocation for situational awareness and precise handoff to a PTZ device, enabling enhanced decision-making, safety, coordination, and efficiency.

技术参数
常规
保修
Camera: 3 years / Sensor: 10 years
尺寸（长 x 宽 x 高）
Without sunshield: 259 × 114 × 106 mm/10.2 × 4.5 × 4.2 in With sunshield: 282 × 129 × 115 mm/11.1 × 5.1 × 4.5 in
电子变焦
4x continuous E-Zoom
调焦范围
Athermalized, focus-free
功耗
Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC(VA) Heater off: <9 W <10 W <9 W <15 W Heater on (@ 100%): <25 W <28 W <25W <32W
探测器类型
Long-life, uncooled VOx microbolometer
有效分辨率
327,680 pixels
重量
With sunshield: 7.5/9/13/19/25/35 mm 2.2 kg (4.75 lb) - 60 mm 2.4 kg (5.25 lb) - 75 mm 2.5 kg (5.5 lb) Without sunshield: 7.5/9/13/19/25/35 mm 1.8 kg (4 lb) - 60 mm 2.0 kg (4.5 lb) - 75 mm 2.2 kg (4.75 lb)
测量与分析
分析技术管理
Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control
分析技术特性
Region Entrance/Intrusion Detection, Crossover/Fence Trespassing, CNN classifier
合规性与认证
安全性
IEC 62368-1: 2018
发射
FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits); EN55032 Class A
合规性
CE Marked ; RoHS III Directive 2015/863/EU; WEEE Directive 2012/19/EU
浪涌抗扰性
AC Power Lines and Signal Lines
ESD: EN 61000-4-2
RS: EN 61000-4-3; EN 55035 (2017 + A11: 2020); EN 50130-4
EFT: EN 61000-4-4
Surge: EN 61000-4-5
CS: EN 61000-4-6
PFMF: EN 61000-4-8
认证
CE: EN55032 Class A; FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits)
认证
IEC 60068-2-1:2007; IEC 60068-2-2:2007; ISTA-1A (handling)
环境
IP防护等级（防尘防水）
IP66 & IP67
存储温度范围
-50°C to 85°C (-58°F to 185°F)
防破坏
IK10 (except lens and windows)
工作温度范围
-40°C to 70°C/-40°F to 158°F (cold start)
抗振动
IEC 60068-2-64:08
抗撞击
MIL-STD-810G, Method 516.6 (Operational) IEC 60068-2-27:08 (Transportation)
湿度
0-95% relative humidity (storage), 0-90% relative humidity (operation)
可见光相机
波长范围
7.5 µm to 13.5 µm
光圈数
f/1.1
焦距
75 mm
灵敏度
<25 mK @ 25°C (77°F) for f/1.0
视场角（FOV）
8.6° x 6.6°
阵列格式
640 × 512
热像仪
镜头
75 mm
热成像AGC模式
Brightness, Contrast, Sharpness, Grey Shade Compression, Gamma, Smart Screen Balance
热成像AGC侦测区域[ROI]
Default, Presets, and User definable to ensure optimal image quality on subjects of interest
热图像设置
Brightness, Contrast, Sharpness, Auto AGC, Digital Detail Enhancement (DDE), Gamma, Smart Screen Optimization
热帧频
NTSC: 30 Hz - PAL: 30 Hz / 8.3 Hz
图像一致性优化
Automatic flat field correction (FFC); thermal and temporal triggers
像素间距
17 µm
视频和录制
NTSC或PAL复合视频
Hybrid system with IP & analog video, dynamic NTSC or PAL settings
本地存储
Support for up to 512 GB SD Card (not supplied)
视频压缩
Two independent channels of H.264 / H.265 or MJPEG
系统集成
兼容外部分析软件
Yes
控制输入/输出
1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC)
模拟复合视频输出
1Vp-p (PAL or NTSC), 1 x BNC 75 Ω
视频流分辨率
640 × 512
网络API
NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T
以太网
10/100 Mbps
以太网视频
Two independent channels of H.264 / H.265 or MJPEG
支持的协议
IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1x
配件
转角安装座
杆装式基座
壁挂安装座
电源供应器
相关文档
出口限制

出口限制

本页所载信息涉及的产品可能受《国际武器贸易条例》(ITAR)（22 C.F.R. 第 120-130 条）或《出口管制条例》(EAR)（15 C.F.R. 第 730-774 条）约束，具体取决于最终产品的规格；司法管辖权和分类将应要求提供。
