Thermal Radiometric Camera

FLIR FC-Series AI-R

型号: FLIR FC-617 AI-R, 17° × 14° (35 mm) f/1.1 lens 转到支持页面
product image

The FLIR FC-Series AI-R is a ruggedized thermal radiometric camera that integrates industry-leading thermal imaging to detect hot spots and combustion risks in harsh outdoor environments and remote areas. When the object surface temperature reaches pre-set upper thresholds, the FC-Series AI-R continuously monitors for temperature changes or hot spots in areas prone to fire risks, such as storage containers, warehouses, combustible piles, landfills, and waste bunkers. Upon detecting a hot spot or significant temperature change, the camera promptly sends an alarm to the Video Management System (VMS) for immediate assessment and swift deployment of response tactics. Integrating Deep Neural Network and motion analytics, with a thermal sensitivity of <35 mK NETD, the FC-Series AI-R offers enhanced situational awareness and clear image quality. This camera also offers a range of lens options and boasts cyber-hardened integration with both FLIR UVMS and third-party VMS, making it a versatile tool for perimeter security and physical asset safety.

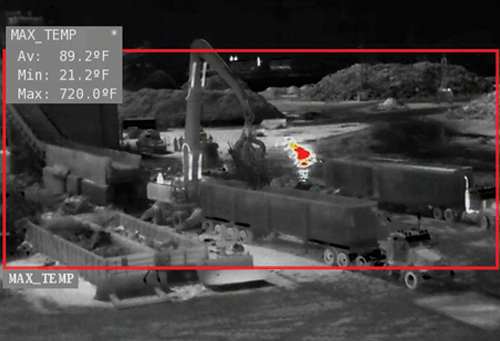

  • Contactless Hot Spot Detection

    • Process temperature differences in real-time to identify risks of overheating ​
    • Monitor relative temperature changes to detect failing components
    • Measure surface temperatures with an accuracy of +/-5°C (41°F) for targets below 150°C (302°F)

  • Industry-leading thermal imaging​

    • Four high-performance thermal lenses ranging from an 17° × 14° to a 69° × 56° field of view (FOV)​
    • Crisp images from premium thermal sensor for rapid visual verification of hot spots using isotherm specific color palettes to differentiate pixels from coldest to warmest detected object surface temperatures​
    • Video with 640 × 512 full resolution allows to view images, thermal patterns, and contrast despite smoke, low light, light fog, and haze
    • FLIR’s custom AGCs provide images with extremely high contrast​
    • Dynamic Detail Enhancement (DDE) creates sharp edges and contrast that improve analytics performance​

  • Intelligent Alarms and Easy Integration

    • Set temperature thresholds to be notified in real-time when an object’s surface temperature breaches the upper values

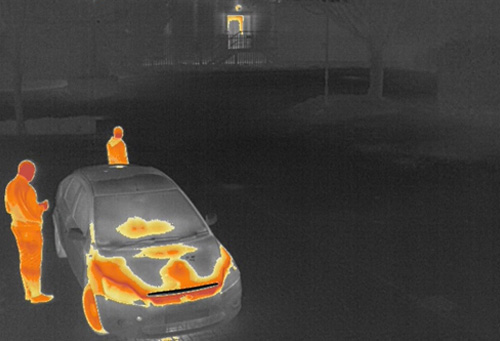

    • Reduce false radiometric alarms by combining thermal hot-spot detection with intelligent vehicle detection, to filter out alarms from hot vehicle exhaust pipes in monitored areas
    • Seamlessly integrate with FLIR UVMS, as well as with other major third-party video management systems, through the FLIR Nexus® software development kit
    • FLIR NEXUS® on-board enables target geolocation for situational awareness, and precise hand-off to a pan-tilt-zoom device




技术参数
常规
保修
Camera: 3 years / Sensor: 10 years
尺寸（长 x 宽 x 高）
With sunshield: 282 mm × 129 mm × 115 mm (11.1 in × 5.1 in × 4.5 in)
Without sunshield: 259 mm × 114 mm × 106 mm (10.2 in × 4.5 in × 4.2 in)
输入电压
Source: PoE+ (802.3at) 12 VDC 24 VDC 24 VAC (VA)
Heater off: <9 W <10 W <9 W <15 W
Heater on (@ 100%): <25 W <28 W <25W <32W
探测器类型
Long-life, uncooled VOx microbolometer
有效分辨率
327,680 pixels
在交流电源线上的浪涌抗扰性
ESD: EN 61000-4-2
RS: EN 61000-4-3; EN 55035 (2017 + A11: 2020); EN 50130-4
EFT: EN 61000-4-4
Surge: EN 61000-4-5
CS: EN 61000-4-6
PFMF: EN 61000-4-8
重量
Weight with sunshield 2.2 kg (4.75 lb)
Weight without sunshield 1.8 kg (4 lb)
测量与分析
测温范围
High Gain Mode: 0ºC to 160ºC (32ºF to 320ºF)
Low Gain Mode: 0ºC to 380ºC (32ºF to 716ºF)
Video analytics only functional in High Gain Mode
测温精度
Target below 100ºC (212ºF) ±5ºC (±9ºF) accuracy
Target below 150ºC (302ºF) ±5% accuracy
Target above 150ºC (302ºF) ±15% accuracy
Measured at 25ºC (77ºF) ambient temperature. Error may be greater at extreme temperatures.
分析技术管理
Web-based configuration and management; masking of analytic detection areas, adjustable sensitivity, automatic responses, remote I/O control
分析技术特性

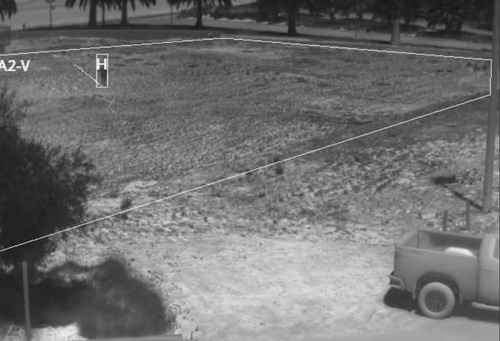

Region entrance/Intrusion detection, Crossover/fence trespassing, DNN classifier
合规性与认证
安全性
IEC 62368-1: 2018
发射
FCC 47 CFR Part 15, Subpart B, Class A (within CISPR 22:2008 Class A limits); EN55032 Class A
合规性
CE Marked; RoHS III Directive 2015/863/EU; WEEE Directive 2012/19/EU
环境
IP防护等级
IP67
除冰/抗冰
MIL-STD 810F:00 + Notice 1:00 + Notice 2:02 + Notice 3:03
存储温度范围
-50°C to 85°C (-58°F to 185°F)
防破坏
IK10 (except lens and windows)
工作温度范围
-40°C to 70°C (-40°F to 158°F) cold start
抗振动
IEC 60068-2-64:08
抗撞击
Shock (Operational) MIL-STD-810G, Method 516.6
Shock (Transportation) IEC 60068-2-27:08
湿度
0-90% relative humidity
可见光相机
波长范围
7.5 µm to 13.5 µm
调焦
Athermalized, focus-free
光圈数
f/1.1
焦距
35 mm
灵敏度
≤35 mK @ 25°C (77°F) for f/1.0
视场角（FOV）
17° × 14°
阵列格式
640 × 512
热像仪
热图像设置
Brightness, Contrast, Sharpness, Auto AGC, Gamma, Smart Screen Optimization
热帧频
30 Hz / 8.3 Hz
图像一致性优化
Automatic flat field correction (FFC); thermal and temporal triggers
像素间距
17 µm
视频和录制
热成像视频AGC侦测区域[ROI]
Default, Presets, and User definable to ensure optimal image quality on subjects of interest
视频标准
IP & analog video
视频压缩
Two independent channels of H.264 / H.265 or MJPEG
网络安全
安全性
IEEE 802.1X, TLS/HTTPS, User authentication access control via firewall, user credentials with policy enforcement, digest authentication, IP address filtering
系统集成
存储介质
Up to 512 GB microSD / microSDHC / microSDXC card (sold separately)
兼容外部分析软件
Yes
控制输入/输出
1x dry contact in; 1x relay out (rated load 0.025 A@ 5 VDC)
模拟复合视频输出
1Vp-p (PAL or NTSC), 1 × BNC 75 Ω
视频流分辨率
640 × 512
网络API
NEXUS SDK, NEXUS CGI, ONVIF Profile S, G, T
以太网
10/100 Mbps
支持的协议
IPV4, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SNMP, IEEE 802.1X
