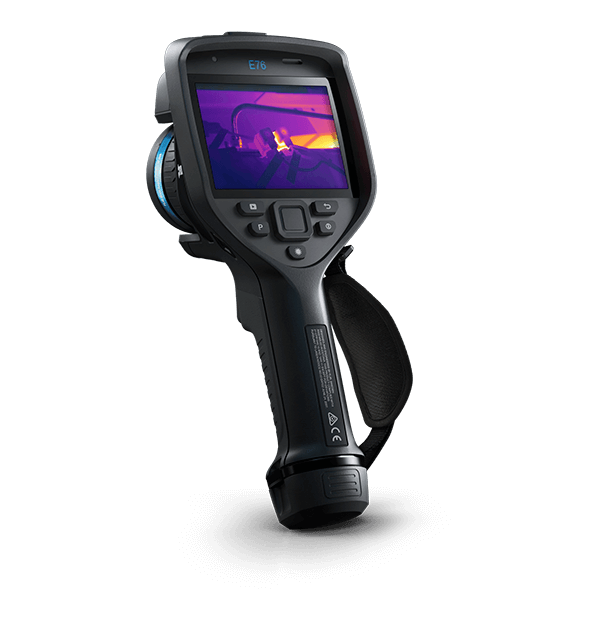

FLIR E76

成像与光学

UltraMax（超级放大）功能

Yes

波长范围

7.5-14 µm

调焦

Continuous LDM, One-shot LDM, One-shot contrast, Manual

调色板

Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava

非辐射红外视频流

H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi

辐射红外视频流

Yes, over UVC

辐射红外视频录制

Real-time radiometric recording (.csq)

光圈数

24°: 1.5
14°: 1.5

红外分辨率

320 × 240 pixels

画中画

Resizable and movable

焦距

24°: 17 mm (0.67 in)
14°: 29 mm (1.41 in)

镜头识别

Automatic

空间分辨率（IFOV）

24°: 1.33 mrad/pixel
14°: 0.75 mrad/pixel

取景器

No

热灵敏度/NETD

<40 mK, 24° at 30°C (86°F)
<50 mK, 14° at 30°C (86°F)

视场角（FOV）

24° × 18°，14° × 10°

数码相机

5 MP, with built-in LED photo/video lamp

数字变焦

1-4x continuous

探测器类型与像素间距

Uncooled microbolometer, 17 µm

图像频率

30 Hz

最小焦距

24°: 0.18 m (0.59 ft), 14°: 1.0 m (3.28 ft)

最小焦距（带MSX）

24°: 0.5 m (1.64 ft)
14°: 1.0 m (3.28 ft)

测量与分析

测量预设

No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2

测温范围

-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F). 300 to 1000°C (572 to 1832°F) range available with purchase of T199559 High Temperature Option

点温仪

3 ea. in live mode

精度

±2°C (±3.6°F) or ±2% of the reading

用户界面

声音

60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®

文本

Predefined list or touchscreen keyboard

显示屏

4", 640 × 480 pixel touchscreen LCD with auto-rotation

电源

电池工作时间

>2.5 hours at 25°C (68°F) and typical use

电池类型

Rechargeable Li-ion battery

环境与认证

安全性

EN/UL/CSA/PSE 60950-1

存储温度范围

-40 to 70°C (-40 to 158°F)

工作温度范围

-15 to 50°C (5 to 122°F)

常规

FLIR 检测路线

Enabled in camera

包装

Infrared camera with lens, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Starter

激光指示器

Yes
